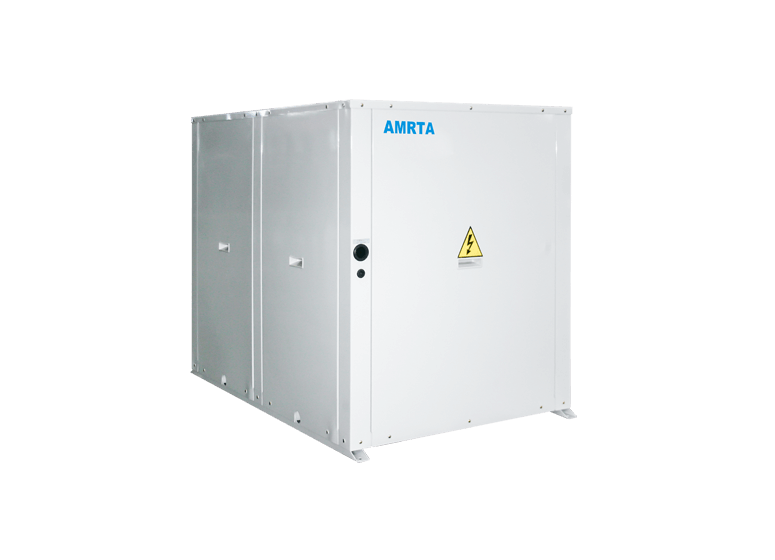

Structure
Panels and frame are made from galvanized steel protected with polyester powder painting to ensure total resistance to atmospheric agents
Hermetic compressor
Single phase (mod. 10, 12,15) and 3-phase (mod.17 to 130) scroll type compressors, with built-in thermal overload cut-out and crankcase heater, mounted on rubber vibration dampers
Evaporator
High efficiency plate type heat exchanger, factory insulated with flexible close cell material
Condenser
High efficiency plate type heat exchanger, factory insulated with flexible close cell material
Desuperheater
High efficiency stainless steel brazed plate heat exchanger, factory insulated with flexible close cell material
Refrigerant circuit
Copper tube connection with charge valves, filter drier, thermostatic expansion valve (capillary for mod.10 to 15), gas-liquid separator, high pressure switch and low pressure switch
The heat pump units are complete also with 4-way valve and one way valve
Hydraulic circuit
Built with user side and source side water inlet/outlet connectors, water discharge connectors, air vent valve (mod.10 to 30 the user side is complete also with expansion vessel, water pump and flow switch. )
Electric panel
Consists of:
♦ Compressor contactor
♦ Compressor protection breaker
♦ User side water pump contactor (for mod.10 to 30)
♦ User side water pump breaker (for mod.10 to 30)
♦ Microprocessor with function display
Optional
♦ Sight glass which must be installed in factory
♦ Source side flow switch
♦ Source side water pump
♦ Anti-vibration rubber
♦ Metallic filter for the water circuit
♦ Heat recovery exchanger
♦ Tube in tube heat exchanger
Model |
Unit |
10 |
12 |
15 |
17 |
20 |
25 |
30 |
36 |
40 |
Nominal cooling capacity* |
kW |
10 |
12 |
15 |
17 |
20 |
25 |
30 |
36 |
41 |
Nominal heating capacity** |
kW |
12.1 |
14 |
15.7 |
19.8 |
23.2 |
28 |
33.9 |
40.3 |
46.3 |
Power supply |
V/PH/Hz |
220/1/50 |
380/3/50 |
|||||||
Hermetic compressor |
||||||||||
Qty |
Nr. |
1 |
1 |
1 |
1 |
1 |
2 |
2 |
2 |
2 |
Cooling power input* |
kW |
2.75 |
3.16 |
3.49 |
4.25 |
4.9 |
5.99 |
6.85 |
8.32 |
9.62 |
Cooling current* |
A |
13.2 |
14.8 |
16 |
8 |
9.3 |
11.6 |
13.6 |
15.7 |
17.9 |
Heating power input** |
kW |
3.67 |
4.2 |
4.71 |
5.75 |
6.65 |
8.01 |
9.35 |
11.24 |
13.12 |
Heating current* |
A |
17.6 |
19.7 |
21.2 |
10.1 |
11.8 |
14.6 |
17.4 |
20.1 |
22.9 |
User side heat exchanger |
||||||||||
Pressure drop |
kPa |
33 |
33 |
36 |
36 |
38 |
38 |
38 |
39 |
40 |
Water flow |
m³/h |
1.7 |
21 |
2.6 |
2.9 |
3.4 |
4.3 |
5.2 |
6.2 |
7.1 |
Water pipe |
DN |
25 |
25 |
25 |
25 |
25 |
40 |
40 |
40 |
40 |
Source side heat exchanger |
||||||||||
Pressure drop |
kPa |
33 |
33 |
36 |
36 |
38 |
38 |
38 |
39 |
40 |
Water flow |
m³/h |
0.7 |
0.8 |
0.9 |
1.1 |
1.3 |
1.7 |
2 |
2.5 |
2.9 |
Water pipe |
DN |
25 |
25 |
25 |
25 |
25 |
40 |
40 |
40 |
40 |
Water pump |
||||||||||
Power input |
kW |
0.4 |
0.49 |
0.49 |
0.55 |
0.55 |
0.75 |
0.75 |
0.92 |
0.92 |
Current |
A |
2.2 |
2.4 |
2.4 |
1.1 |
1.1 |
1.2 |
1.2 |
1.5 |
1.5 |
Water head |
m |
17 |
20 |
18 |
19 |
16 |
19 |
16 |
20 |
17 |
Dimension (mm) |
L |
820 |
820 |
820 |
820 |
820 |
1400 |
1400 |
1400 |
1400 |
W |
575 |
575 |
575 |
575 |
575 |
850 |
850 |
850 |
850 |
|
H |
910 |
910 |
910 |
910 |
910 |
1050 |
1050 |
1050 |
1050 |
|
Sound pressure level*** |
dB(A) |
56 |
58 |
62 |
62 |
62 |
62 |
64 |
64 |
64 |
Net weight |
kg |
130 |
140 |
150 |
160 |
180 |
265 |
280 |
300 |
320 |
Model |
Unit |
45 |
50 |
55 |
60 |
68 |
75 |
90 |
100 |
130 |
Nominal cooling capacity* |
kW |
45 |
50 |
55 |
60 |
68 |
75 |
90 |
100 |
133 |
Nominal heating capacity** |
kW |
53.3 |
55.6 |
62.2 |
71 |
78.1 |
80.6 |
106.4 |
117.2 |
156.2 |
Power supply |
V/PH/Hz |
380/3/50 |
||||||||
Hermetic compressor |
||||||||||
Qty |
Nr. |
2 |
2 |
2 |
2 |
2 |
4 |
3 |
3 |
4 |
Cooling power input* |
kW |
10.69 |
11.24 |
11.5 |
12.98 |
14.3 |
14.8 |
19.47 |
21.45 |
28.6 |
Cooling current* |
A |
20.4 |
21 |
21.1 |
23.8 |
25.8 |
28.4 |
35.7 |
38.7 |
51.6 |
Heating power input** |
kW |
14.45 |
15.17 |
15.97 |
17.92 |
19.74 |
20.64 |
26.88 |
29.61 |
39.48 |
Heating current* |
A |
26.2 |
26.9 |
27.6 |
31.2 |
33.8 |
37.2 |
46.8 |
50.7 |
67.6 |
User side heat exchanger |
||||||||||
Pressure drop |
kPa |
40 |
42 |
42 |
48 |
48 |
50 |
52 |
52 |
55 |
Water flow |
m³/h |
7.7 |
8.6 |
9.5 |
10.3 |
11.7 |
12.9 |
15.5 |
17.2 |
22.9 |
Water pipe |
DN |
40 |
40 |
50 |
50 |
50 |
50 |
65 |
65 |
80 |
Source side heat exchanger |
||||||||||
Pressure drop |
kPa |
40 |
42 |
42 |
48 |
48 |
50 |
52 |
52 |
55 |
Water flow |
m³/h |
3.2 |
3.3 |
3.7 |
4.1 |
4.6 |
4.7 |
6.2 |
6.8 |
9.1 |
Water pipe |
DN |
40 |
40 |
50 |
50 |
50 |
50 |
65 |
65 |
80 |
Water pump |
||||||||||
Power input |
kW |
1.05 |
1.05 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
Current |
A |
2 |
2 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
Water head |
m |
18 |
17 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
Dimension (mm) |
L |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1400 |
1850 |
1850 |
W |
850 |
850 |
850 |
850 |
850 |
850 |
850 |
880 |
880 |
|
H |
1050 |
1050 |
1050 |
1050 |
1050 |
1050 |
1050 |
1250 |
1250 |
|
Sound pressure level*** |
dB(A) |
66 |
66 |
68 |
72 |
72 |
72 |
73 |
73 |
74 |
Net weight |
kg |
340 |
360 |
280 |
300 |
340 |
360 |
460 |
500 |
550 |
Performance values refer to the following conditions:
* Source side water inlet/outlet temperature 18ºC/29ºC, user side water inlet/outlet temperature 12ºC/7ºC.
** Source side water inlet/outlet temperature 15ºC/7ºC, user side water inlet/outlet temperature 40ºC/45ºC.
*** Sound pressure measured at a distance of 1 m and a height of 1.5 m above the ground in an open field.
