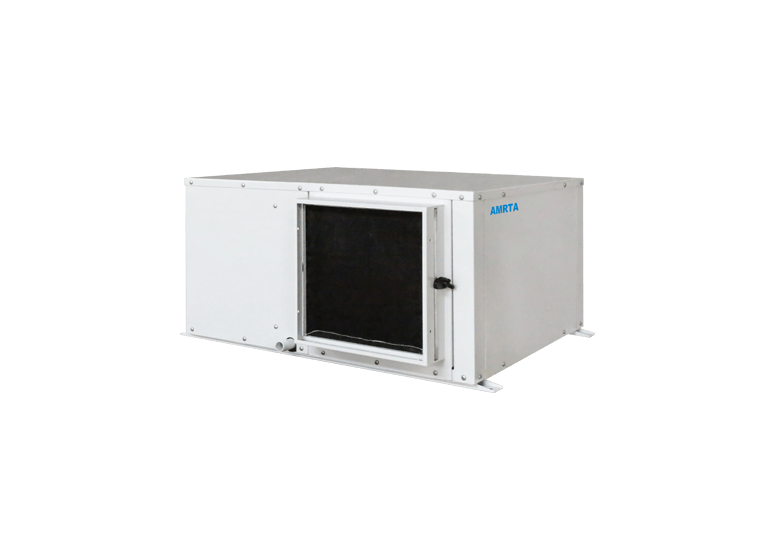

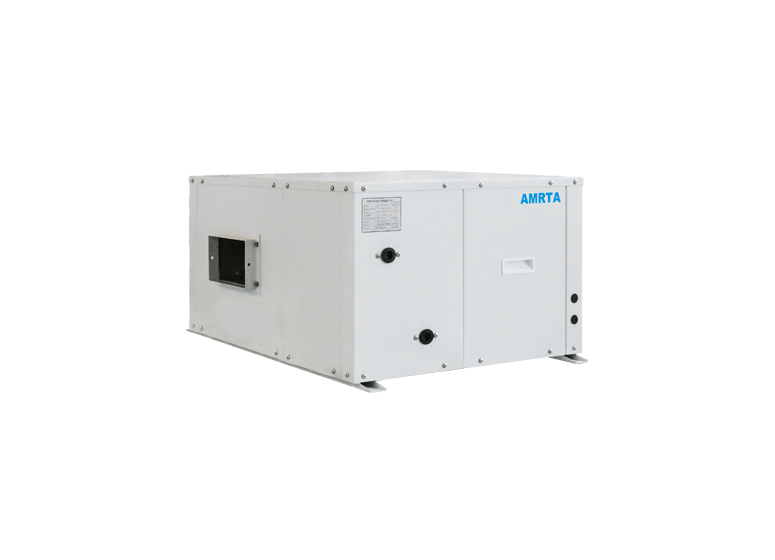

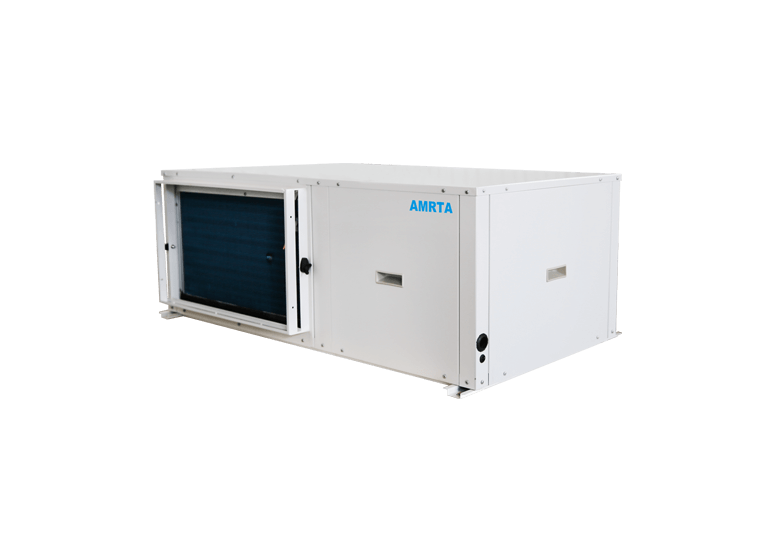

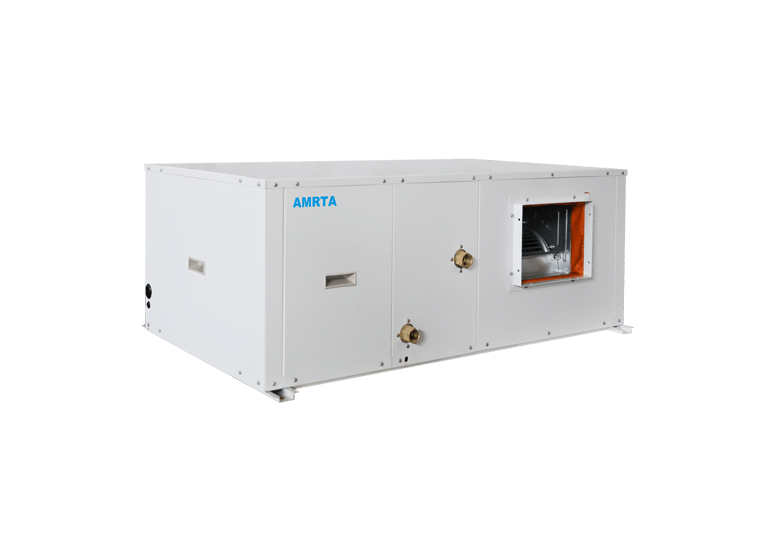

Water Loop Heat Pump Unit

Home

Product

Available in: Cooling, Heating

Capacity: 2.5kW~130kW

Refrigerant: R410A/R32

Application: Schools, Hotels, Hospitals, Industry, Commercial Buildings

CONSULT

MESSAGE

DOWNLOAD

>Features >Parameters >Catalog

Structure

Galvanised steel construction, closed cell foam lined compressor and fan compartments, with an insulted and powder coated drain tray for complete moisture protection, the drain tray is easily removed for inspection and cleaning.

Refrigerant

Each unit is factory charged with refrigerant R410a, which is deemed to have zero ozone depletion potential.

Hermetic compressor

Single phase rotary compressor is used for this type unit, with built-in thermal overload cut-out, mounted on rubber vibration dampers.

Centrifugal fan

High efficiency, double inlet centrifugal fan Protection level IP44. Low noise, low speed, big air flow and high ESP.

Water side heat exchanger

High efficiency coaxial heat exchanger, factory insulated with flexible close cell material.

Air filter

An optional filter integrated return air spigot is available on all models.The filter is a washable polypropylene net media. Care should be taken, when locating each unit, that to enough space is provided to enable the one-piece filter to be withdrawn to its full length from either side of the unit.

Electric heater (optional)

Electric heater is optional on cooling only versions. Electric elements have spirally wound stainless steel fins to give increased area and low surface temperature. They are totally enclosed within the unit and are supplied with safety cutouts. An optional fan run-on timer for rapid heat dissipation is available.

Electric panel

Consists of:

Compressor contactor

Compressor protection breaker

Microprocessor with function display

Insulation

AMWCP are well insulated to minimise condensation and attenuate noise.

All models are equipped with wire controller with the following features

7 days programmable timer
Auto random restart
Error self diagnostic

Safety protection

High pressure switch

Low pressure switch

Discharge temperature protection

Anti freezing protection

Model		Unit	WCP2.5	WCP3.5	WCP5	WCP7	WCP10	WCP12
Nominal cooling capacity		kW	2.5	3.5	5	7	10	12.2
Nominal cooling capacity		Ton	0.7	1	1.4	2	2.9	3.5
Cooling power input		kW	0.71	0.98	1.4	1.92	2.8	3.32
Nominal heating capacity		kW	3	4.5	6.4	8.1	12.2	14.5
Nominal heating capacity		Ton	0.9	1.3	1.8	2.3	3.5	4.1
Heating power input		kW	0.72	1.07	1.5	2	2.9	3.25
Power			220V/1Ph/50Hz
Minimum wiring specification			2×1.5mm2+1×1mm2		2×2.5mm2+1×1.5mm2		2×4mm2+1×2.5mm2
Compressor type			Rotary
Air flow amount		m³/h	490	680	950	1280	1900	2160
External static pressure		Pa	60	60	120	120	160	200
Refrigerant	Type		R410A
Refrigerant	Charge	Kg	0.4	0.6	0.85	1.1	1.7	1.9
Condenser	Type		Tube in tube coaxial heat exchanger
Fan	Type		High efficiency low noise centrifugal fan
Fan	Power		220V/1Ph/50Hz
Evaporator	Type		High efficiency copper tubes aluminum fins heat exchanger
Water flow amount		m³/h	0.4	0.6	0.9	1.2	1.7	2.1
Water pressure drop		Kpa	8	8	10	14	16	20
Diameter of water in/out pipe		mm	DN20
Diameter of condensing pipe		mm	DN25
Dimension	L	mm	910	1260	1310	1210	1320	1410
	W	mm	660	660	710	790	790	790
	H	mm	350	350	450	450	450	450
Weight		kg	70	75	90	100	130	135
Noise level		dB(A)	54	54	57	57	60	60

Model		Unit	WCP14	WCP18	WCP23	WCP30	WCP35	WCP45
Nominal cooling capacity		kW	14.4	18	23	30	34	46
Nominal cooling capacity		Ton	4.1	5.1	6.6	8.6	9.7	13.1
Cooling power input		kW	4.06	5.1	6.18	7.8	8.26	11.6
Nominal heating capacity		kW	17.3	22.6	25.9	30	35.4	49
Nominal heating capacity		Ton	4.9	6.5	7.4	8.6	10.1	14
Heating power input		kW	4	5.6	6.86	8.6	9.1	12.84
Power			220V/1Ph/50Hz	380V/3Ph/50Hz
Minimum wiring specification			2×6mm2+1×4mm2		3×2.5mm2+1×1.5mm2		3×4mm2+1×2.5mm2
Compressor type			Rotary	Scroll
Air flow amount		m³/h	2500	3200	4000	5200	6200	8000
External static pressure		Pa	200	200	250	250	250	250
Refrigerant	Type	R410A
Refrigerant	Charge	Kg	2.2	3	4	4.8	6	8
Condenser	Type		Tube in tube coaxial heat exchanger
Fan	Type		High efficiency low noise centrifugal fan
Fan	Power		220V/1Ph/50Hz
Evaporator	Type		High efficiency copper tubes aluminum fins heat exchanger
Water flow amount		m³/h	2.4	3.1	4	5.2	5.8	7.9
Water pressure drop		Kpa	20	23	26	30	33	33
Diameter of water in/out pipe		mm	DN20	DN40
Diameter of condensing pipe		mm	DN25
Dimension	L	mm	1680	1680	2170	1975	2230	2430
	W	mm	930	930	1030	1030	1130	1130
	H	mm	450	600	500	650	650	900
Weight		kg	140	155	170	200	200	245
Noise level		dB(A)	63	66	66	68	68	69

Model		Unit	WCP60	WCP72	WCP90	WCP110	WCP130
Nominal cooling capacity		kW	60.5	72	92	108	132
Nominal cooling capacity		Ton	17.3	20.6	26.3	30.9	37.7
Cooling power input		kW	15.6	17	23.2	25.5	35.1
Nominal heating capacity		kW	166	76	98	114	142
Nominal heating capacity		Ton	18.9	21.7	28	32.6	40.6
Heating power input		kW	17.3	19.6	25.8	29.4	38.7
Power			380V/3Ph/50Hz
Minimum wiring specification			3×6mm2+1×4mm2		3×12mm2+1×6mm2
Compressor type			Scroll
Air flow amount		m³/h	10500	12800	16000	19000	24500
External static pressure		Pa	260	280	300	320	330
Refrigerant	Type	R410A
Refrigerant	Charge	Kg	16	17	18	21	24
Condenser	Type		Tube in tube coaxial heat exchanger
Fan	Type		High efficiency low noise centrifugal fan
Fan	Power		380V/1Ph/50Hz
Evaporator	Type		High efficiency copper tubes aluminum fins heat exchanger
Water flow amount		m³/h	13.1	15.3	19.8	23	28.7
Water pressure drop		Kpa	34	35	35	36	36
Diameter of water in/out pipe		mm	DN50
Diameter of condensing pipe		mm	DN25
Dimension	L	mm	2800	3000	3000	3300	3300
	W	mm	1230	1230	1270	1270	1270
	H	mm	850	850	850	850	850
Weight		kg	500	600	720	780	860
Noise level		dB(A)	73	73	74	75	77

Note:
1. Norminal cooling capacity test condition: Water side water inlet/outlet 30ºC/35ºC, Ambient temperature DB 27 ºC, WB 19 ºC.
2. Norminal heating capacity test condition: Water side water inlet 20ºC, Ambient temperature DB 20 ºC, WB 15 ºC.
3. Noise level measured in the noise lab with background noise of 25 dB(A), at a distance of 1 m.
4. As our continuous products improvement, Amrta reserves the right to change specifications and design without notice.
