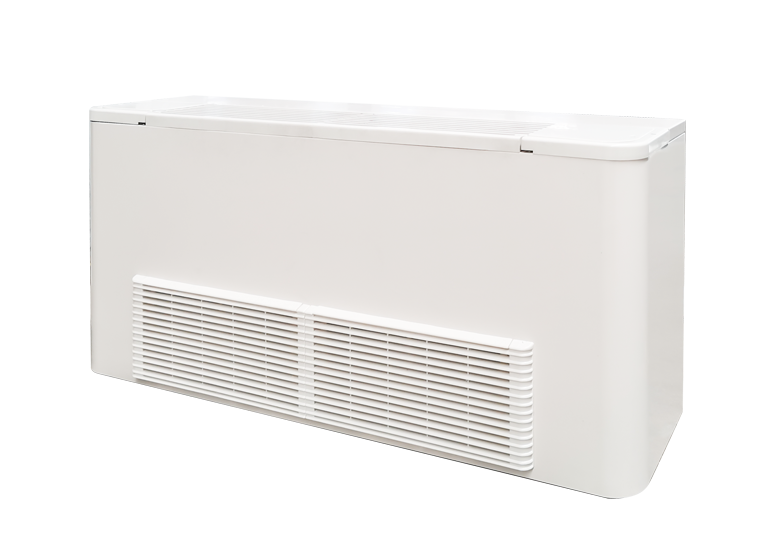

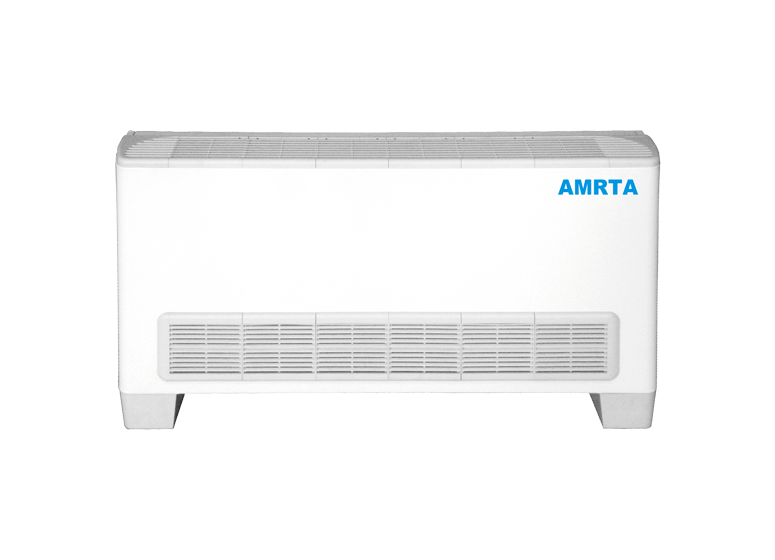

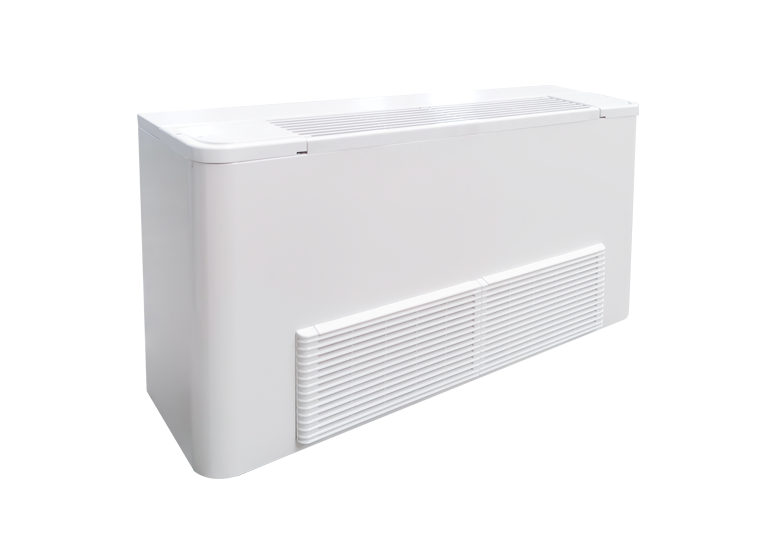

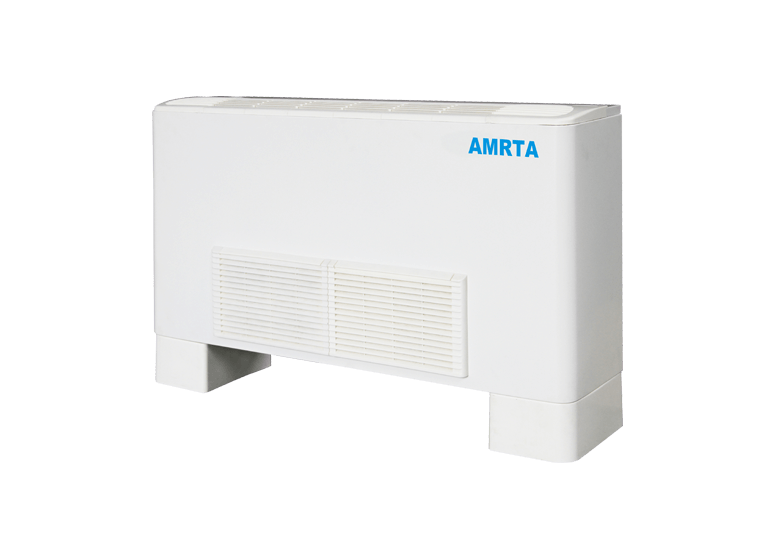

Exposed Type Fan Coil Unit

Available in: Cooling, Heating

Air Flow: 340m³/h~2380m³/h

Application: Office Building, Superstore, Hotel, Hospital, Bank, Apartment

  • Available in 9 models. The whole range is designed for vertical exposed mounted.



  • Compact design, suitable for strict space installation.



  • Cross-flow type balanced fan blower with 3 speeds motor, statically and dynamically balanced, low noise.



  • Metal casing, strength



  • Heat exchanger: made of copper tubes and aluminum hydrophilic fins, coil collector with air vent, partial drainage vent.



  • The easily removable filter is made of filtering honeycomb polypropylene fabric and supported by a plastic frame.



  • The drip tray is complete with a drain pump for draining the condensate water.



  • All electric wires are connected to enclosed electrical terminal block.



  • LCD controller on board is standard.



  • LCD line controller is optional.



  • Remote controller is optional.

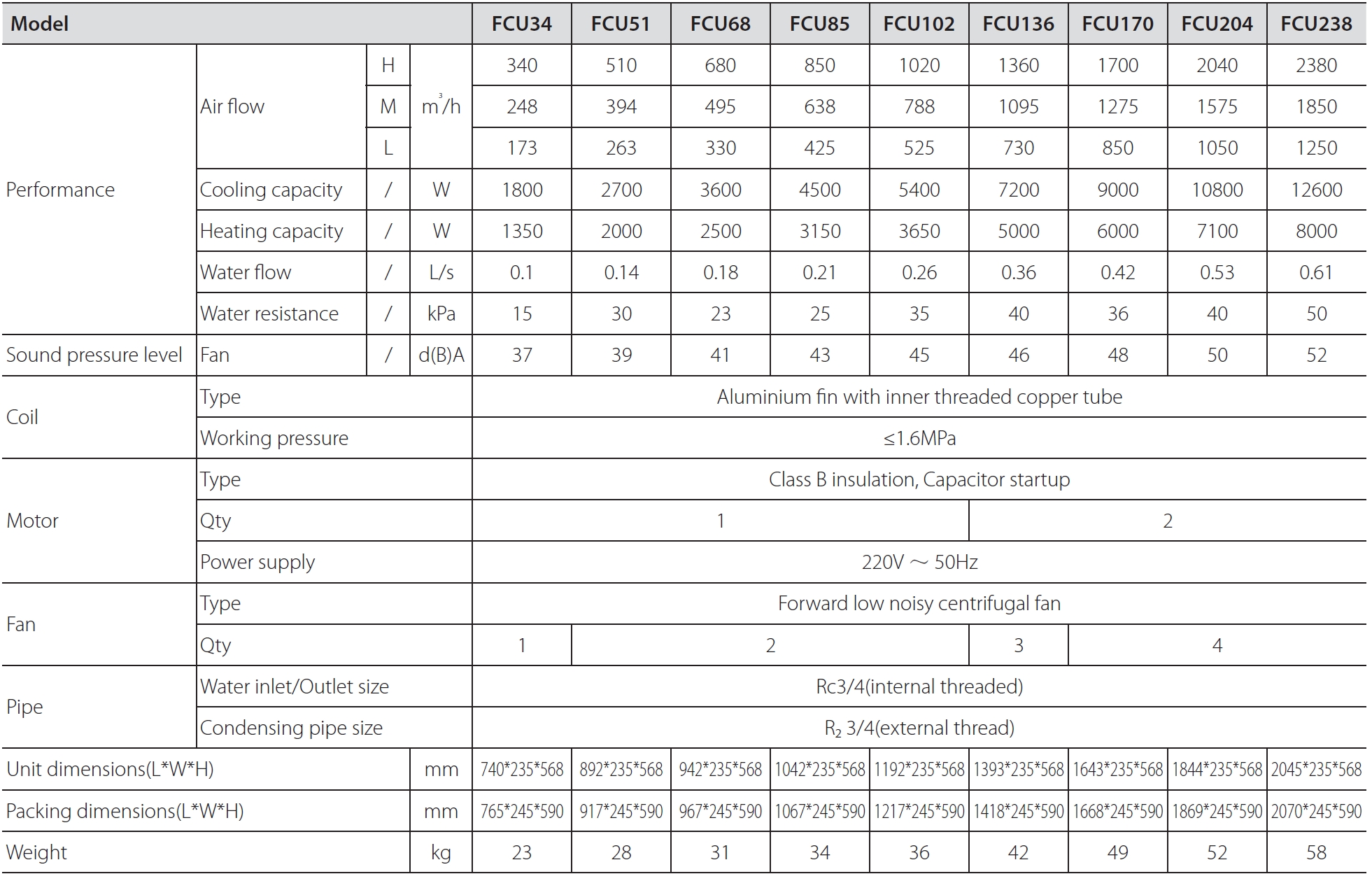

Model Unit 34 51 68 85 102 136 170 204 238
Air flow H [m3/h] 380 510 680 850 1020 1360 1700 2040 2380
M [m3/h] 300 420 550 680 850 1020 1360 1700 1800
L [m3/h] 250 360 450 550 650 850 1100 1360 1200
Cooling data cooling capacity* KW 2 2.7 3.8 4.5 5.5 7.4 9 10.8 12.6
Water flow L/h 345 460 650 770 1030 1200 1550 1850 2160
Water pressure drop kPa 10 17 16 18 23 29 38 40 45
2-pipes heating Heating capacity* KW 2.8 4 5.4 6.7 8 10.8 13.5 15 18
4-pipes heating Heating capacity* KW 1.7 2.3 3 3.7 4.3 5.8 7.4 8.8 10.3
Water flow L/h 150 200 260 320 370 500 640 760 630
Water pressure drop kPa 4 6 10 13 17 21 30 35 35
Electric Power input W 60 65 67 95 105 156 183 190 220
Current input A 0.26 0.29 0.3 0.43 0.46 0.68 0.83 0.85 1.02
Water connections In(inch) ZG3/4″
Out(inch) ZG3/4″
Sound pressure level ** [dB(A)] 37 39 41 43 45 46 50 52 54
Net Dimension With foot mm(W/D/H) 805x205x611 905x205x611 1105x205x611 1605x205x611 1905x205x611
Without foot mm(W/D/H) 805x205x481 905x205x481 1105x205x481 1605x205x481 1905x205x481
Net weight-2 pipes(4 pipes) With foot kg 19(20) 219220 26(28) 38(40) 44(48)
Net weight-2 pipes(4 pipes) Without foot kg 17(18) 19(20) 24(28) 36(38) 42(46)



* The data are referred to the following conditions:

Cooling: room temperature: 27 ºC, DB / 19.5 ºC WB; water temperature: 7/12 ºC, high speed.

Heating: room temperature: 20 ºC, water inlet temperature: 60 ºC, high speed. Water flow rate same as in cooling operation.

** Sound pressure measured in anechoic room 1 m away from the unit.



Chilled Water Fan Coil Unit Catalogue
