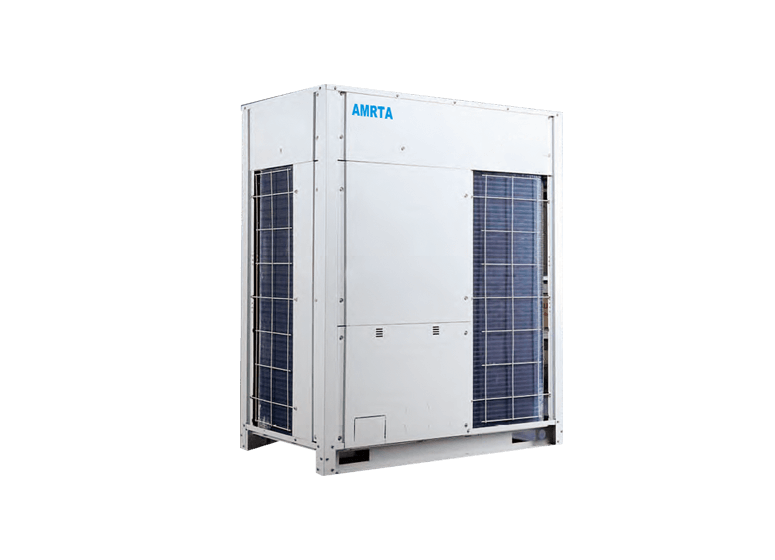

High Efficiency
Dual DC inverter compressor for each model.
Large heat exchanger with high performance.Ensuring the compression ratio always in safety zone.
High precision and stepless regulation of the output capacity.

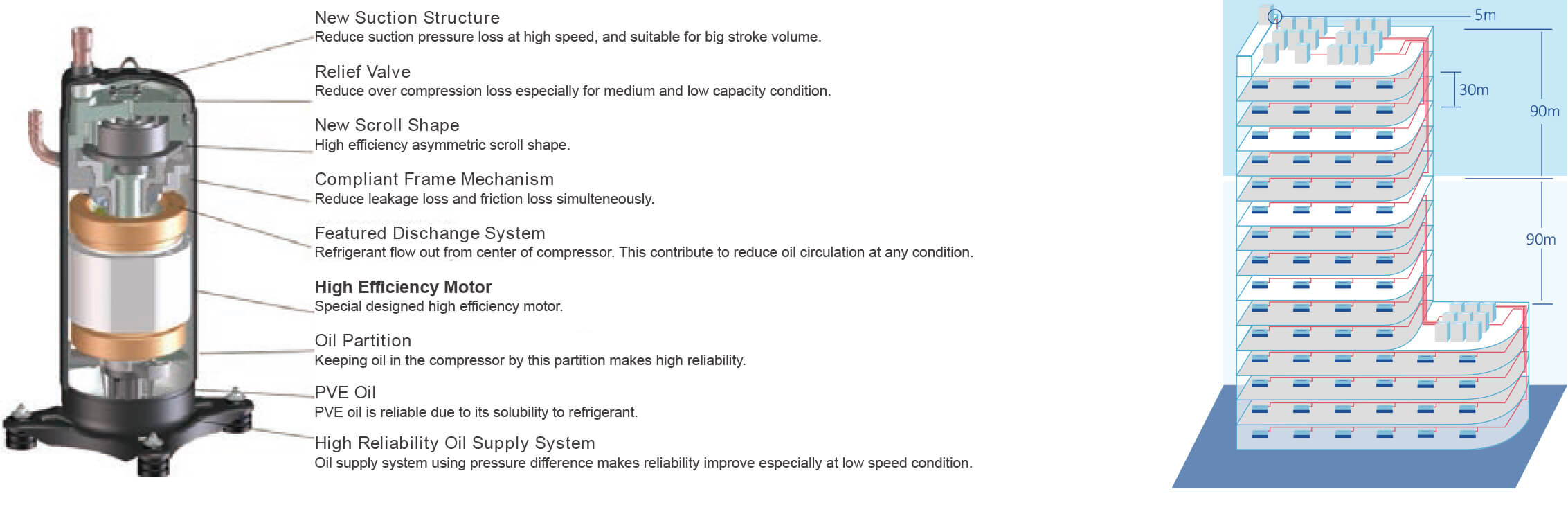

Long Piping Length
Max. Total piping length — 1000m
Max. Actual piping length — 190m
Max. piping length from 1st indoor branch to the farthest indoor unit — 40m/90m*
Max. Level difference between outdoor units — 5m
Max. Level difference between indoor units — 30m
Max. Level difference between ODU and IDU units — 90m
*The longest length after first branch is 40m as standard can be extended to up to 90m under certain conditions. Please contact your local dealer for further information.
Wide Operation Range
No matter the ambient temperature is as high as 52°C in hot summer or -20°C in cold winter, the system can operate perfectly and supply comfortable environment for users.
Easy Installation
Easy installation and less material consumption (compare with combination units).
① Power & grounding wire
② Communication wire
③ Main gas pipe
④ Main liquid pipe
⑤ Power & grounding wire
⑥ Communication wire
⑦ Oil balance pipe
Compact structure and less occupied space.
Easy Maintenance
Auto refrigerant recycling (Optional function), easy operation, refrigerant-saving and environment-friendly.
HP | 22 | 24 | 26 | 28 | 30 | 32 | ||
Model | Outdoor | 50Hz | ARV-H620/5R1I | ARV-H670/5R1I | ARV-H730/5R1I | ARV-H780/5R1I | ARV-H850/5R1I | ARV-H900/5R1I |
Capacity | Cooling | kW | 61.5 | 67 | 73 | 78.5 | 85 | 90 |
Heating | kW | 69 | 75 | 81.5 | 87.5 | 95 | 100 | |
Electric Data | Power supply | V~,Hz,Ph | 380 ~415, 50, 3 | 380 ~415, 50, 3 | 380 ~415, 50, 3 | 380 ~415, 50, 3 | 380 ~415, 50, 3 | 380 ~415, 50, 3 |
Cooling input | kW | 18.67 | 20.1 | 21.9 | 23.7 | 25.8 | 27.5 | |
EER | W/W | 3.29 | 3.33 | 3.33 | 3.31 | 3.29 | 3.27 | |
Heating input | kW | 17.75 | 19.3 | 20.2 | 22 | 24.4 | 26.3 | |
COP | W/W | 3.89 | 3.89 | 4.03 | 3.98 | 3.89 | 3.80 | |
Performance | Air Flow Volume | m3/h | 21000 | 21000 | 28000 | 28000 | 30000 | 30000 |
Sound Pressure level | dB(A) | ≤63 | ≤63 | ≤65 | ≤65 | ≤65 | ≤65 | |
Compressor |
Type |
DC inverter |
DC inverter |
DC inverter |
DC inverter |
DC inverter |
DC inverter |
|
Quantity |
2 |
2 |
2 |
2 |
2 |
2 |
||
Fan Motor |
Type |
AC motor |
AC motor |
AC motor |
AC motor |
AC motor |
AC motor |
|
Quantity |
2 |
2 |
2 |
2 |
2 |
2 |
||
Max. No. of Indoor Units | unit | 36 | 39 | 43 | 46 | 50 | 53 | |
Connection Ratio | 50~130% | 50~130% | 50~130% | 50~130% | 50~130% | 50~130% | ||
Dimension (WxDxH) |
Net | mm | 1590×765×1600 | 1590×765×1600 | 2350×765×1600 | 2350×765×1600 | 2350×765×1600 | 2350×765×1600 |
Packing | mm | 1650×815×1770 | 1650×815×1770 | 2410×815×1770 | 2410×815×1770 | 2410×815×1770 | 2410×815×1770 | |
Weight | Net | kg | 400 | 400 | 500 | 500 | 500 | 500 |
Gross | kg | 420 | 420 | 515 | 515 | 515 | 515 | |
Refrigerant Type | R410A | R410A | R410A | R410A | R410A | R410A | ||
Pipe Diameter | Liquid Side | mm | 15.88 | 15.88 | 19.05 | 19.05 | 19.05 | 19.05 |
Gas Side | mm | 28.6 | 28.6 | 34.9 | 34.9 | 34.9 | 34.9 | |
Operation Range |
Cooling | °C | -5~52 | -5~52 | -5~52 | -5~52 | -5~52 | -5~52 |
Heating | °C | -20~27 | -20~27 | -20~27 | -20~27 | -20~27 | -20~27 | |
Stuffing Quantity |
20/40/40H | unit | 7/14/14 | 7/14/14 | 4/8/8 | 4/8/8 | 4/8/8 | 4/8/8 |
Notes:
1.Cooling Capacity: Indoor temperature 27°C DB/19°C WB; Outdoor temperature: 35°C DB/ 24°C WB.
2.Heating Capacity:Indoor temperature 20°C DB; Outdoor temperature:7°C DB/ 6°C WB.
3.Piping Length:Equivalent piping length: 7.5m, level difference: 0m.
4.Anechoic chamber conversion value, measured in test room. During actual operation.These values are normally somewhat higher as a result of ambient conditions.
5.The above designs and specifications are subject to change without prior notice. Final specifications please refer to technical specification provided by sales representative. 6.Sound values are measured in a semi-anechoic room, at a position 1m in front of the unit and 1.3m above the floor.
7.The above combined types are factory-recommended type. The combined type also can be combined at will.
* Please leave your message!We will send detail technical info and quotation to you!
